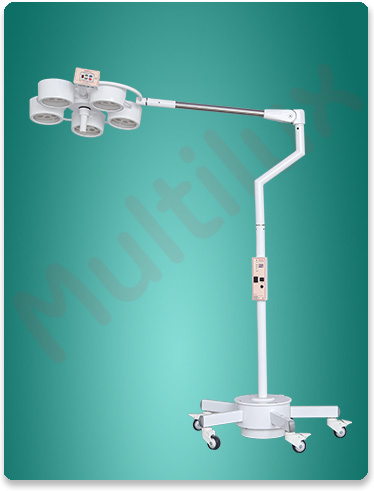

LED Mobile OT Light

Shadowless Mobile Operation Lamp, Fully spring arm balanced, mounted on heavy non tilting base on 5 ball bearing swivel wheel with Locking mechanism. Provided with detachable Sterilizable Handle for proper positioning & focusing of lamp head

Technical Specification	Cooled LM-5
Lamp Head Diameter	>600 mm Dia
No of LED	45 LED
LEDs lifetime in hours	50000 hr
Illuminations	200000 Lux
Intensity Control	0 to 100
Color Temperature	4000 to 5000 degree Kelvin
CRI (Ra)	>93
Depth of Illumination	110cm
Field Size	12-16 cm
Height	Adjustable 76 to 96 cm
Type of Control Panel	Manual & Touch screen
Handel Type	Detachable Sterilizable Handle
Dome Roatation	360 degree
Movement	Radial, Axial, Angular
Arm Length	75 cm
Power Supply	SMPS
Bulb Type & Rating	Hi-Power LED, 18-21watts
Input Voltage (Mains)	160 - 230V AC with Indian Plug
ULS Battery Backup (optional)	60 minutes

Silent Features:

Homogeneous & Shadow Free: Light provides homogeneous & Shadow free with uninterrupted illumination in case of blocking of the LED modules by the head or shoulders of the surgical staff.
Deep Cavity illumination: Adjustable focusing System facilitates illumination into deep cavity.
Cool Light: LED Light restricts the temperature increases at surgeon’s head below 1 degree & at operative field below 5 degree.
Long durability: Lamp is rust free Epoxy Powder Coated .
No Break Down: Wiring is done with special Silver coated Teflon Wire.Also the dome has in built Swivel Locking System which protects from wire break down.
Natural White Light: LED Light provide Natural white light that facilitates good color fidelity.
High Intensity: Hi-Power LED’s provides efficient high intensity light.
Detachable Sterilizable Handle: Provided with Detachable Sterilizable Handle for positioning and focussing .

Spectrum Analysis of Optical Parameters in all LED OT Lights:

Confirms Natural Day Light & High CRI facilitates good Color Fidelity.
Each OT Lights undergoes spectrum analytical test that accompanies test reports with supplied unit.

Color Spectrum
